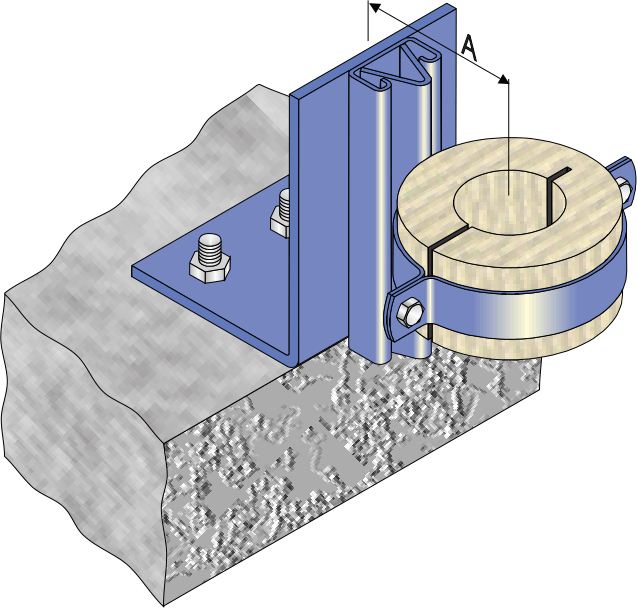

Floor Riser Guide and Timber Ferrule – Steel Pipe
| PART NO. | A | PIPESIZE | INS | FERRULE DIA |
| FM189-015A | 80 | 15nb | 25 | 21 x 73 |
| FM189-015B | 94 | 15nb | 38 | 21 x 102 |
| FM189-015C | 109 | 15nb | 50 | 21 x 127 |
| FM189-020A | 80 | 20nb | 25 | 27 x 76 |
| FM189-020B | 94 | 20nb | 38 | 27 x 102 |
| FM189-020C | 109 | 20nb | 50 | 27 x 127 |
| FM189-025A | 85 | 25nb | 25 | 34 x 83 |
| FM189-025B | 101 | 25nb | 38 | 34 x 115 |
| FM189-025C | 115 | 25nb | 50 | 34 x 140 |
| FM189-032A | 88 | 32nb | 25 | 43 x 89 |
| FM189-032B | 101 | 32nb | 38 | 43 x 115 |
| FM189-032C | 115 | 32nb | 50 | 43 x 140 |
| FM189-040A | 94 | 40nb | 25 | 48 x 102 |
| FM189-040B | 109 | 40nb | 38 | 48 x 127 |
| FM189-040C | 121 | 40nb | 50 | 48 x 152 |
| FM189-050A | 101 | 50nb | 25 | 60 x 115 |
| FM189-050B | 115 | 50nb | 38 | 60 x 140 |
| FM189-050C | 128 | 50nb | 50 | 60 x 165 |
| FM189-065A | 109 | 65nb | 25 | 73 x 127 |
| FM189-065B | 121 | 65nb | 38 | 73 x 152 |
| FM189-065C | 134 | 65nb | 50 | 73 x 178 |
| FM189-080A | 115 | 80nb | 25 | 89 x 140 |
| FM189-080B | 128 | 80nb | 38 | 89 x 165 |
| FM189-080C | 140 | 80nb | 50 | 89 x 190 |
| FM189-100A | 128 | 100nb | 25 | 115 x 165 |
| FM189-100B | 140 | 100nb | 38 | 115 x 190 |
| FM189-100C | 155 | 100nb | 50 | 115 x 221 |
