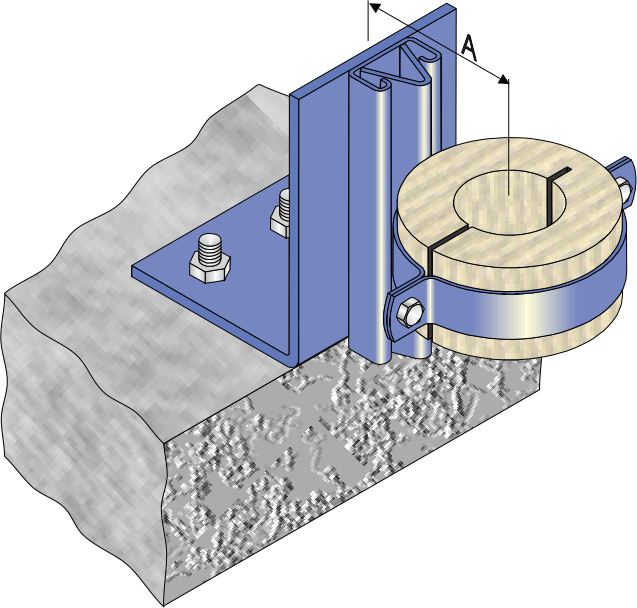

Floor Riser Guide and Timber Ferrule – Copper Pipe
| PART NO. | A | INS | FERRULE DIA | PIPE DIA |
| FM189-015D | 76 | 25 | 13 x 65 | 15cu |
| FM189-015E | 88 | 38 | 13 x 89 | 15cu |
| FM189-015F | 101 | 50 | 13 x 115 | 15cu |
| FM189-020D | 78 | 25 | 19 x 70 | 20cu |
| FM189-020E | 94 | 38 | 19 x 102 | 20cu |
| FM189-020F | 109 | 50 | 19 x 127 | 20cu |
| FM189-025D | 80 | 25 | 25 x 76 | 25cu |
| FM189-025E | 94 | 38 | 25 x 102 | 25cu |
| FM189-025F | 109 | 50 | 25 x 127 | 25cu |
| FM189-032D | 85 | 25 | 32 x 83 | 32cu |
| FM189-032E | 101 | 38 | 32 x 115 | 32cu |
| FM189-032F | 115 | 50 | 32 x 140 | 32cu |
| FM189-040D | 88 | 25 | 38 x 89 | 40cu |
| FM189-040E | 101 | 38 | 38 x 115 | 40cu |
| FM189-040F | 115 | 50 | 38 x 140 | 40cu |
| FM189-050D | 94 | 25 | 51 x 102 | 50cu |
| FM189-050E | 109 | 38 | 51 x 127 | 50cu |
| FM189-050F | 121 | 50 | 51 x 152 | 50cu |
| FM189-065D | 101 | 25 | 65 x 115 | 65cu |
| FM189-065E | 115 | 38 | 65 x 140 | 65cu |
| FM189-065F | 128 | 50 | 65 x 165 | 65cu |
| FM189-080D | 109 | 25 | 76 x 127 | 80cu |
| FM189-080E | 121 | 38 | 76 x 152 | 80cu |
| FM189-080F | 134 | 50 | 76 x 178 | 80cu |
| FM189-100D | 121 | 25 | 102 X 152 | 100cu |
| FM189-100E | 134 | 38 | 102 X 178 | 100cu |
| FM189-100F | 147 | 50 | 102 X 203 | 100cu |
